Peliton's Plastic Injection Molding Capabilities.

We have the capabilities and technical experience to handle your plastic injection molding projects large and small. We custom manufacture a wide variety of products including auto parts, pest control devices, kitchen products, toys, promotional products and much more.
If you have a project, invention or idea in mind, we invite you to tour our company located in Valdosta, Georgia, click for driving directions).


FYI: Plastic injection molding machines, consist of a hopper that mixes color and feeds the raw beads into the machine. A heating element that melts the plastic. A screw-type plunger that injects the molten plastic into the mold and the mold where the part is formed.

Molding machine are rated by tonnage, which is the amount of clamping force needed to hold the two halves of the mold closed. The tonnage needed is determined by the size of the part, and the type of material being used. Larger parts require more pressure to hold the mold together.


Injection Molding Machines

Shot Size from .001 to 5.00 pounds.

  • Dima 500 Ton - 80 oz.
  • TMC 250 Ton - 28.00 oz. with 22.05" x 22.05"
    Tie Bar, and 23.6" Mold Height.
  • Vistar ProMax 165 Ton - 16.5 oz.
  • Cincinnati Milacron 165 Ton - 11.0 oz.
  • Dima 85 Ton - 4.8 oz.
  • Sumitomo SH75A 75 Ton - 2.90 oz.

Auxiliary

  • Computrac max 4000XL Moisture Analyzer
  • (2) Branson 900 Ultrasonic Welders
  • Evapco Cooling Tower
  • Cincinnati Milacron 10 Ton Chiller
  • Cincinnati Milacron Temperature Control Unit
  • Musser 2000 Mold texturing unit
  • Aquatherm Temperature Control Unit
  • Cincinnati Milacron Granulator 6" x 7.5"
  • Cumberland Granulator 8" x 10"
  • Conair Granulator 10" x 12"
  • Putney 250 LB Automatic Color/UV Mixer
  • Quincy 350 Air Compressor
  • General Rally4 Air Line Dryer
  • Cincinnati Desiccant Dryer
  • Witlock Desiccant Dryer
  • 9 Accu-Feed Additive Blenders
  • 5 IMS 115403 Hopper Loaders

Packaging and Shipping

  • Dibi Pack Ecopack 900AA Full Auto Sleeve Wrapper
  • Nordson Hot Melt Applicator 115
  • Uline Poly Strapping Machine H-32
  • Rotary Pallet Wrapper
  • EZ-Tek EZ-Taper SB 353
  • EZ-Tek EZ-Taper SB 526

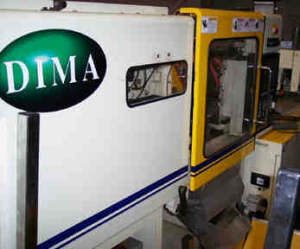

Dima Molding machine

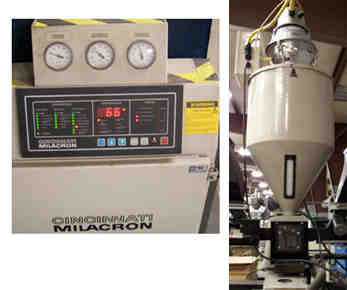

Cincinnati Milacron




CNC Machine
Click to Enlarge
Extron 320 CNC Machine

Fryer CNC MachineClick to Enlarge

Fryer CNC machine






Machine Shop

  • Master Cam 14
  • Mastercam XIIII Cad/Cam Software
  • Birmingham 1660 Lathe 16" x 60" 7 hp
  • Wells-Index Mill 12" x 32" 1 hp
  • Kent USA 10" X 20" Surface Grinder
  • 6" x 12" Surface Grinder
  • Thompson 9" x 36" Surface Grinder
  • Fosdick Drill Press 1hp
  • Grob Vertical Band Saw
  • Lincoln Horizontal Band Saw 4" x 5"
  • 6" Belt Sander
  • 9" Disc Sander
  • Denison A 1t Multipress (Arbor Press)
  • Sunex 4920A 20 Ton Hydraulic Press
  • Santec SED 300C Sinker EDM
  • Fryer MB-10 CNC Mill

Santec 300c

SANTEC SED 300C
Die sinking edm machine




Welding

  • Miller 330A/BP TIG/Ark
  • Century 130 MIG Wire Feed
  • Gesswein Weldmax 150 Micro Welder



Screen Printing and Pad Printing

  • M&R Saturn 1526 Flatbed Screen Printing Press
  • Filbar Model 300 Automatic Screen Printing Press
  • M&R Vitran UV Dryer VIT2-241-01
  • AT-235D Pad Printer
  • AT-612 Exposure Unit
  • Prime 7001 48" x 48" Flatbed Screen Printer
  • Rawdon Industries RI-040 Flame Treatment System
  • NuArc MSP 3140 Metal Halide Screen Imaging System
  • Ex-Cell 2100 PSI Pressure Washer
  • Xante ScreenWriter III
  • Epson R2000 Wide Format Printer
  • CorelDRAW Graphics Suite X4
  • Hot Stamping Machine


Branson 900 Ultrasonic Welder
Branson 900 Ultrasonic Welder





Saturn Automatic Screen Printing Press

Saturn Automatic
Screen Printing Press



Pad Printer Exposure Unit
Pad PrintingExposure Unit

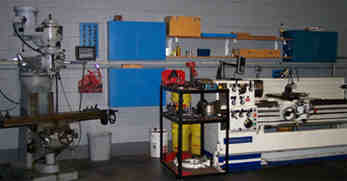

Machine Shop Interior
Birmingham Metal Lathe
AT-235d Pad Printer
Pad Printer
